Do you want to install a Smittybilt winch solenoid and wondering how to wire it? Smittybilt winch solenoids are great for off-road enthusiasts who need to pull their vehicles out of muddy situations. In this article, you will learn how to install the Smittybilt winch solenoid and wire it to your vehicle. So, let’s get started!
What is a Smittybilt Winch Solenoid?

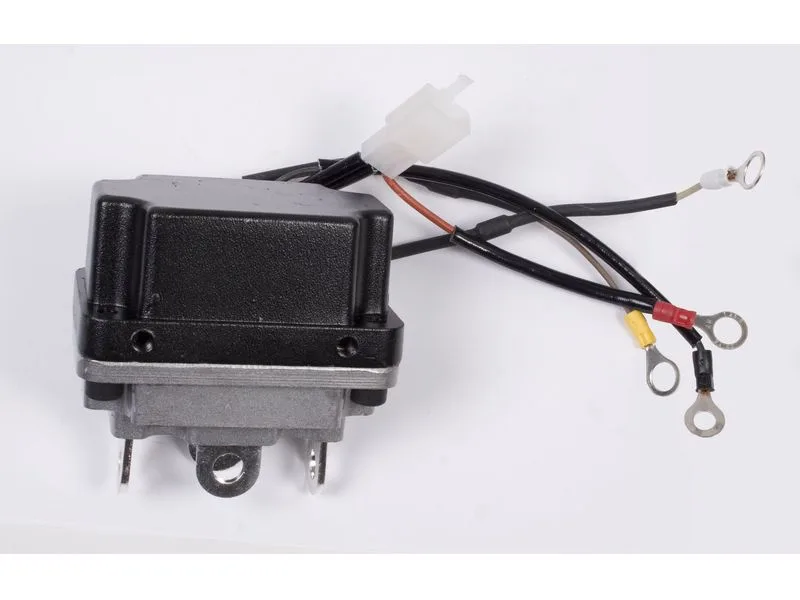

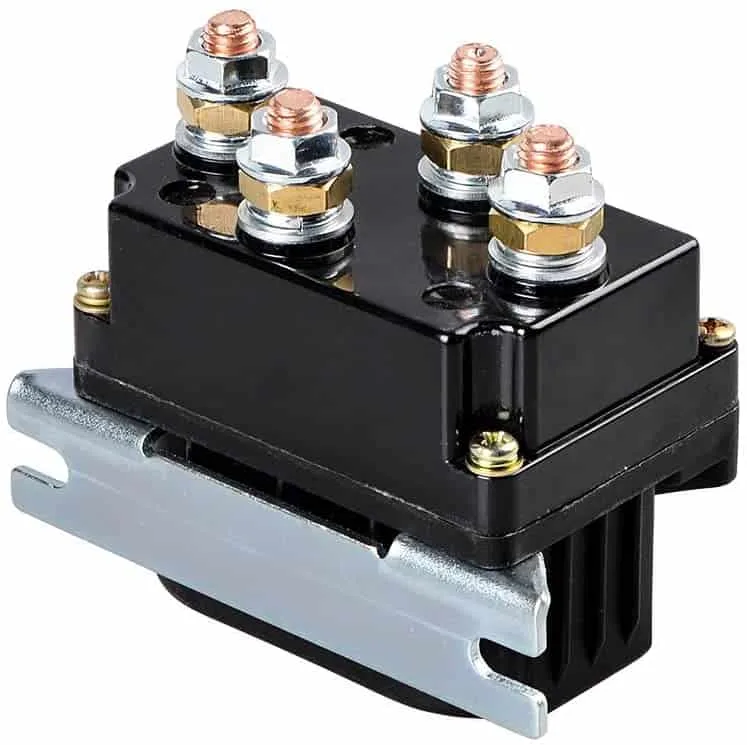

A Smittybilt winch solenoid is a device that controls the flow of electrical current to the winch motor. It converts low-current signals from the winch switch into high-current signals that power the winch motor. It is an essential component of a winch system, and without it, your winch won’t work.
Smittybilt winch solenoids are durable and designed to withstand tough conditions. They are made from high-quality materials and are built to last. You can rely on Smittybilt winch solenoids to provide reliable performance when you need it the most.
Tools and Materials Required
Before you begin installing the Smittybilt winch solenoid, you need to gather the following tools and materials:
| Tools | Materials |
|---|---|
| Wire strippers | Smittybilt winch solenoid |
| Crimping tool | Winch wiring kit |
| Screwdriver | Electrical tape |
| Wrench set |
Installation Process
Step 1: Disconnect the Battery
Before you begin the installation process, you need to make sure that the battery is disconnected. This will ensure that you don’t accidentally shock yourself or cause any damage to the winch or your vehicle. Use a wrench to disconnect the negative terminal of the battery.
Step 2: Locate the Winch Solenoid

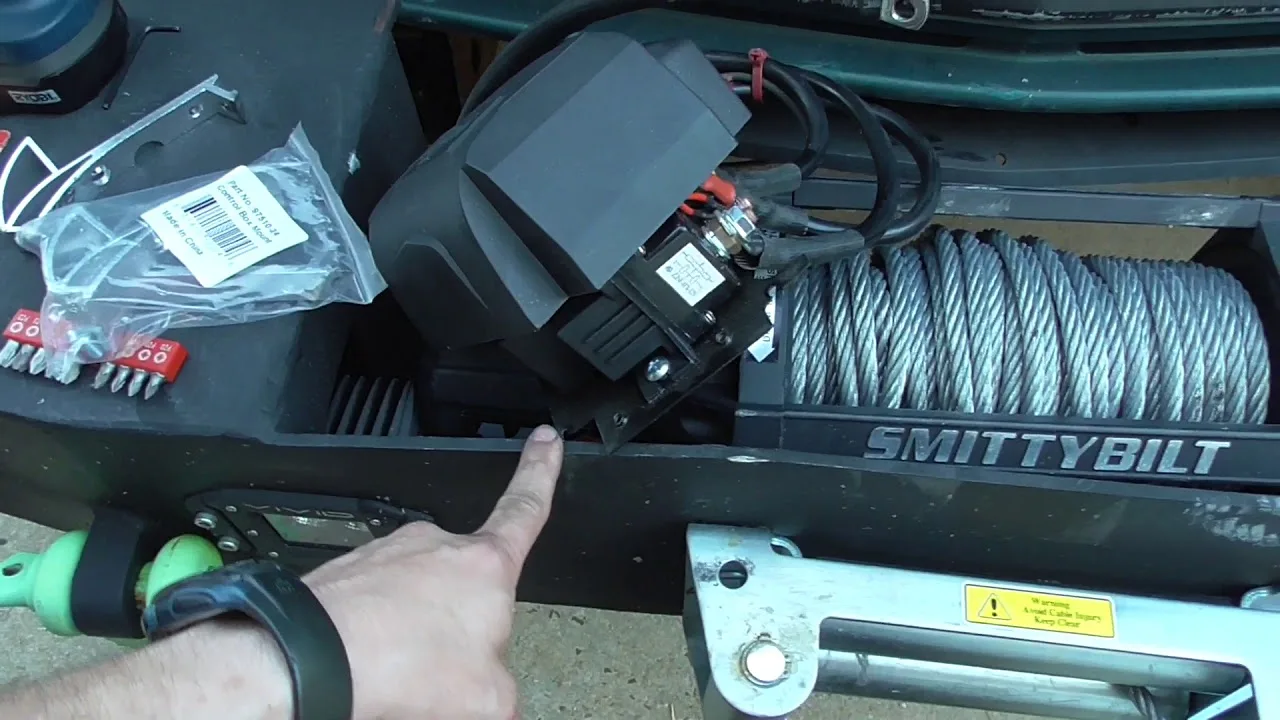

The Smittybilt winch solenoid is usually located near the winch motor. You need to find a suitable location to mount the solenoid. Make sure that it is easily accessible and won’t be exposed to any harsh elements.
Once you have found a suitable location, use the provided mounting hardware to attach the solenoid to the vehicle.
Step 3: Install the Wiring
Use wire strippers to strip the ends of the winch wiring kit. Crimp the wires to the corresponding terminals on the winch solenoid. Use electrical tape to secure the connections and prevent any short circuits.
Connect the positive wire from the winch to the positive terminal on the solenoid. Connect the negative wire from the winch to the negative terminal on the solenoid.
Next, connect the positive wire from the battery to the positive terminal on the solenoid. Connect the negative wire from the battery to the negative terminal on the solenoid.
Double-check all the connections to make sure they are secure and properly connected.
Step 4: Testing
You are now ready to test the winch solenoid. Reconnect the battery and turn on the winch switch. If everything is connected properly, the winch should start to pull the cable. If there are any issues, double-check the connections to make sure they are secure and properly connected.
FAQs
Q: Can I install the Smittybilt winch solenoid myself?
A: Yes, you can install the Smittybilt winch solenoid yourself, as long as you have the necessary tools and materials. Follow the installation process outlined in this article to ensure a successful installation.
Q: Is it important to disconnect the battery before installing the Smittybilt winch solenoid?
A: Yes, it is important to disconnect the battery before installing the Smittybilt winch solenoid. This will ensure that you don’t accidentally shock yourself or cause any damage to the winch or your vehicle.
Q: What is the purpose of a winch solenoid?
A: A winch solenoid controls the flow of electrical current to the winch motor. It is an essential component of a winch system, and without it, your winch won’t work.
Q: How can I tell if the Smittybilt winch solenoid is working properly?
A: You can tell if the Smittybilt winch solenoid is working properly by turning on the winch switch. If everything is connected properly, the winch should start to pull the cable. If there are any issues, double-check the connections to make sure they are secure and properly connected.
That’s all the information you need to know about installing a Smittybilt winch solenoid. Make sure you follow the installation process carefully to ensure a successful installation. With a properly installed winch solenoid, you can enjoy off-roading without worrying about getting stuck in mud or rough terrain. Happy off-roading!
