Are you having trouble with the wiring of your EZGO golf cart lights? Look no further! This article will provide you with a comprehensive guide to understanding the EZGO light wiring diagram. We will explain the different components involved and provide detailed instructions on how to connect them properly. By the end of this article, you will have a good understanding of how to wire your EZGO lights and troubleshoot any issues that may arise.
Understanding the Components
Before we dive into the wiring diagram, let’s go over the different components involved:
- Headlights: These are the lights that illuminate the path in front of the golf cart.
- Taillights: These are the lights that illuminate the path behind the golf cart.
- Brake Lights: These are the lights that illuminate when you apply the brake pedal.
- Turn Signal Lights: These are the lights that flash to indicate which direction you are turning.
- Wiring Harness: This is the bundle of wires that connects all of the lights to the battery and switches.
- Switches: These are the buttons or levers that turn the lights on and off or activate the turn signals.
- Battery: This is the power source that provides the electricity to the lights and other components.

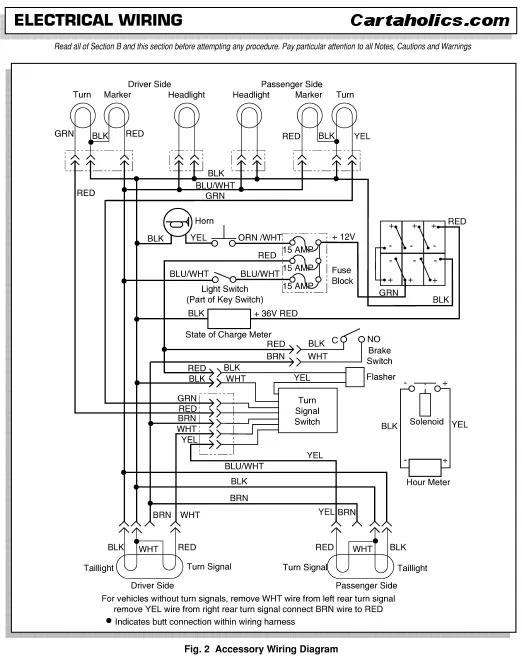

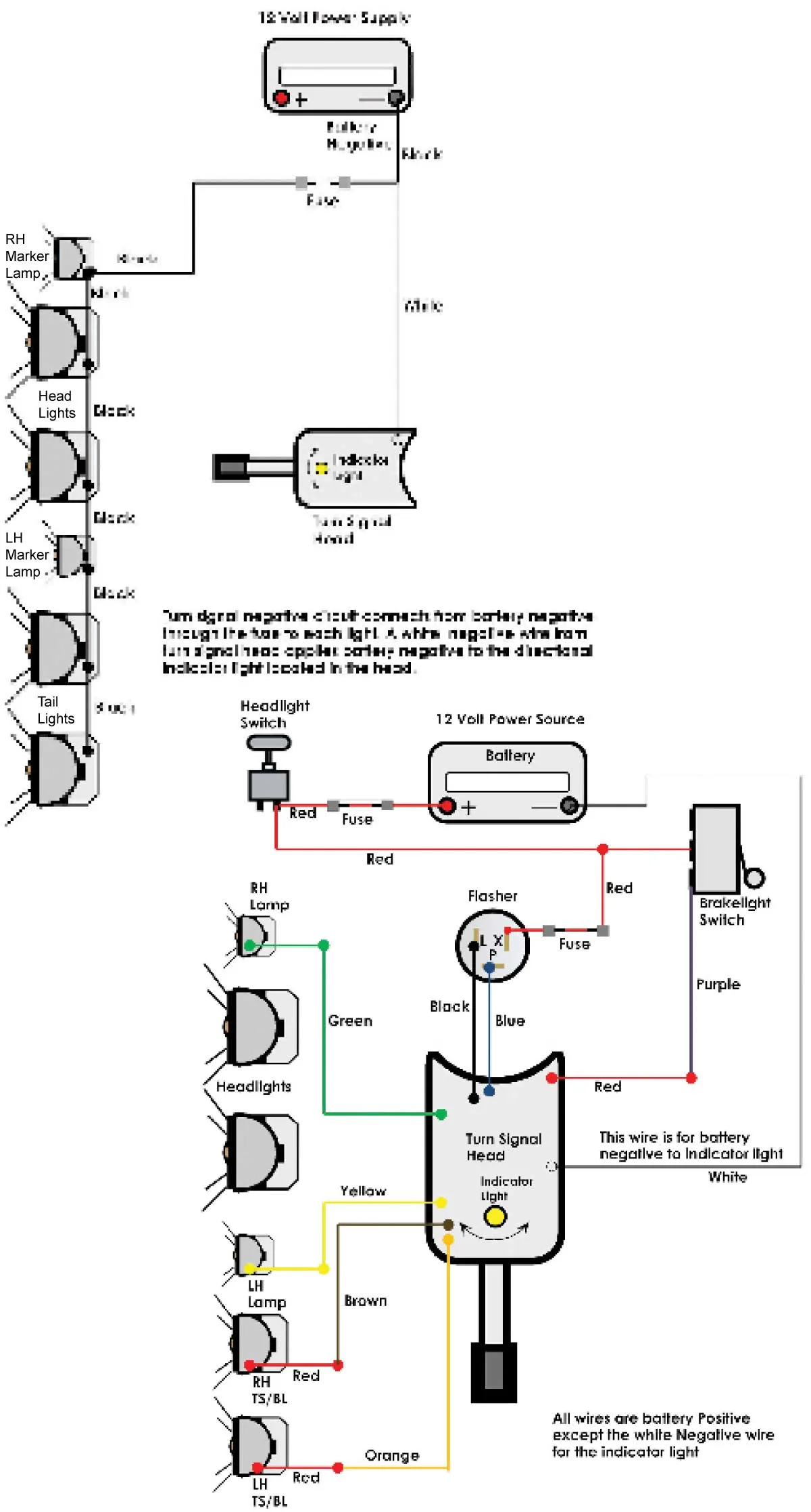

Wiring Diagram
The EZGO Light Wiring Diagram consists of several parts. Let us break it down into sections:
Headlight Wiring
The headlight wiring is composed of two parts – the left and right headlights. Each headlight has three wires: a ground wire, a low beam wire, and a high beam wire. In the wiring diagram, the left headlight is represented by the color green and the right headlight is represented by the color blue.
Here’s how to connect the headlight wiring:
- Connect the ground wire of each headlight to the chassis of the golf cart.
- Connect the low beam wire of each headlight to the low beam wire of the wiring harness.
- Connect the high beam wire of each headlight to the high beam wire of the wiring harness.
Taillight Wiring
The taillight wiring is composed of two parts – the left and right taillights. Each taillight has two wires: a ground wire and a power wire. In the wiring diagram, the left taillight is represented by the color yellow and the right taillight is represented by the color brown.
Here’s how to connect the taillight wiring:
- Connect the ground wire of each taillight to the chassis of the golf cart.
- Connect the power wire of each taillight to the power wire of the wiring harness.
Brake Light Wiring
The brake light wiring is composed of two parts – the left and right brake lights. Each brake light has two wires: a ground wire and a power wire. In the wiring diagram, the left brake light is represented by the color orange and the right brake light is represented by the color red.
Here’s how to connect the brake light wiring:
- Connect the ground wire of each brake light to the chassis of the golf cart.
- Connect the power wire of each brake light to the brake light switch.
- Connect the other end of the brake light switch to the power wire of the wiring harness.
Turn Signal Wiring
The turn signal wiring is composed of several parts – the left and right turn signal lights, the turn signal switch, and the flasher. Each turn signal light has two wires: a ground wire and a power wire. In the wiring diagram, the left turn signal light is represented by the color purple and the right turn signal light is represented by the color pink.
Here’s how to connect the turn signal wiring:
- Connect the ground wire of each turn signal light to the chassis of the golf cart.
- Connect the power wire of each turn signal light to the turn signal switch.
- Connect the flasher to the power wire of the wiring harness.
- Connect the turn signal switch to the flasher and the wiring harness.
FAQs
Q: Why won’t my lights turn on?
A: There are several reasons why your lights may not turn on. Check the wiring connections to make sure they are secure. Also, make sure the battery is fully charged and the switches are in the correct position.
Q: Why are my lights flickering?
A: Flickering lights can be caused by a loose wiring connection. Check all of the connections and make sure they are secure. Also, check the battery voltage to make sure it is not fluctuating.
Q: How do I troubleshoot my turn signals?
A: If your turn signals are not working, check the wiring connections to make sure they are secure. Also, check the turn signal switch and flasher to make sure they are functioning properly.
Conclusion
Wiring your EZGO lights may seem like a daunting task, but with the right instructions and a little bit of patience, you can do it. Remember to follow the wiring diagram carefully and check all of the connections to ensure they are secure. With these tips, you’ll be able to get your lights working in no time!
