1997 Honda Civic Horn Wiring Diagram

The Honda Civic is a popular car model for those who want reliability and affordability, and the 1997 Honda Civic is no exception. The horn is an important component of the car, as it is a safety feature for alerting other drivers on the road. In this article, we will provide a comprehensive guide on the 1997 Honda Civic horn wiring diagram.

Understanding the Honda Civic Horn Wiring Diagram

Before we dive into the details of the wiring diagram, it is important to have a basic understanding of how the horn in the Honda Civic works. The horn is powered by electricity, which is supplied by the car battery. When you press the horn button on the steering wheel, it completes a circuit and allows the electricity to flow to the horn. This causes the horn to vibrate, producing the sound that alerts other drivers.

Now let’s look at the wiring diagram for the 1997 Honda Civic horn.

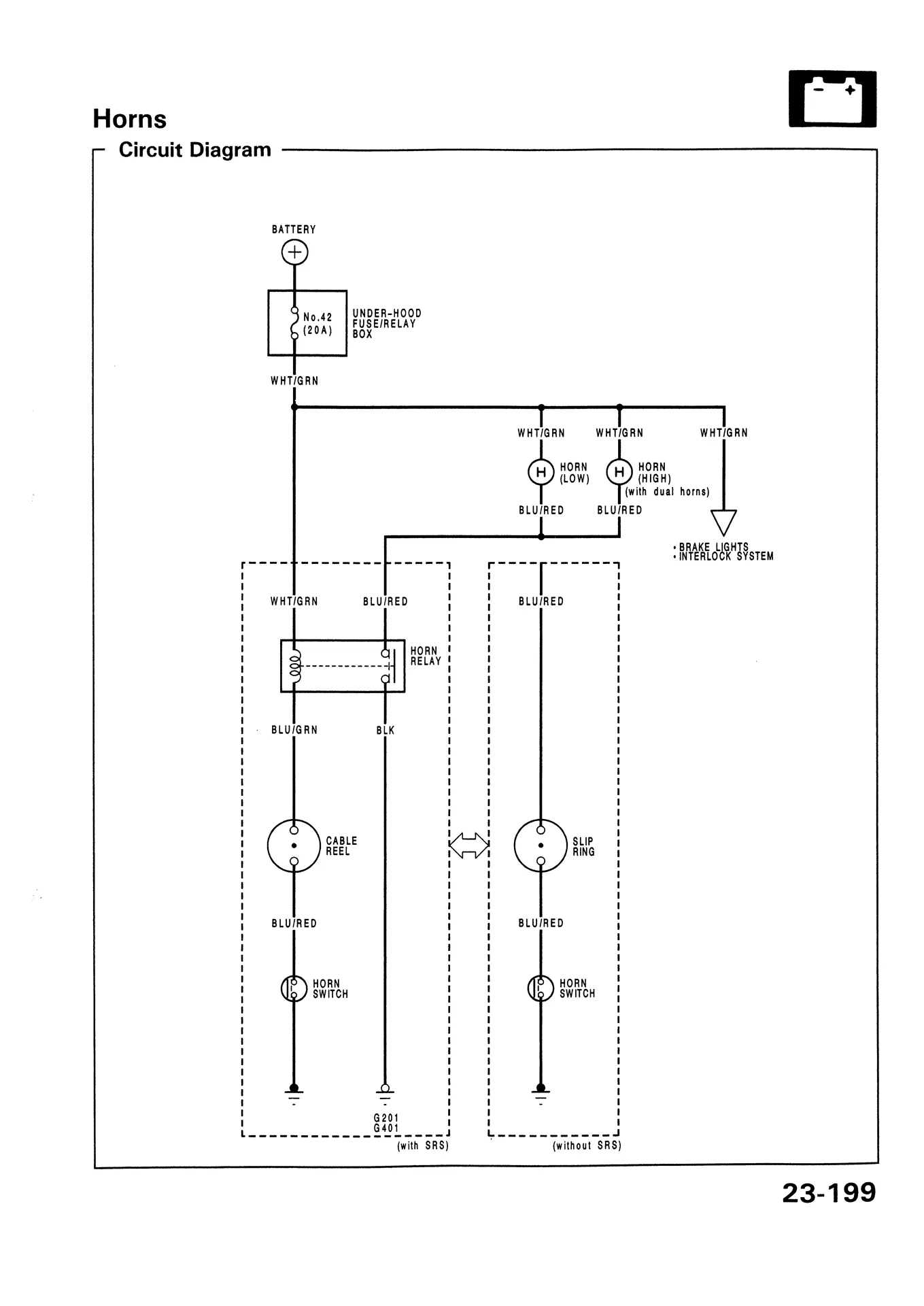

1997 Honda Civic Horn Wiring Diagram

Horn Wire Color Connection
Green/Red Steering Wheel
Green Horn Relay

The wiring diagram for the 1997 Honda Civic horn is relatively simple. The horn is connected to the steering wheel via a green/red wire, which completes the circuit when the horn button is pressed. The other end of the horn is connected to the horn relay via a green wire, which allows the electricity to flow from the battery to the horn when the circuit is complete.

FAQs

1. Why is my Honda Civic horn not working?

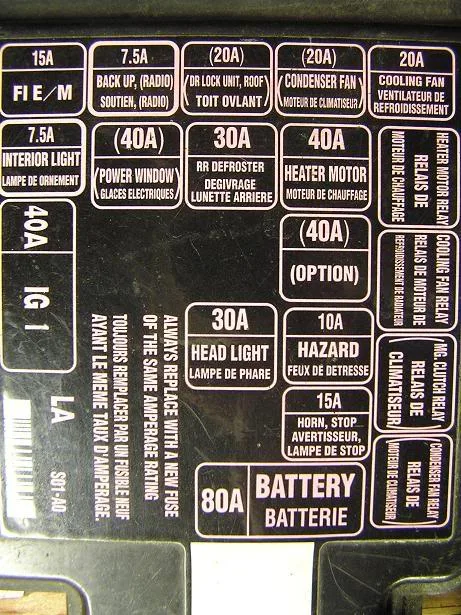

If your Honda Civic horn is not working, there could be several reasons for this. It could be due to a blown fuse, a faulty horn relay, a faulty steering wheel horn button, or a broken horn. You can troubleshoot these issues by checking the fuse, testing the relay, checking the horn button, and inspecting the horn for any physical damage.

2. Can I replace the horn in my Honda Civic?

Yes, you can replace the horn in your Honda Civic if it is not working or if you want to upgrade to a louder horn. To do this, you will need to disconnect the old horn and connect the new horn using the wiring diagram provided by the manufacturer.

3. How do I test if my Honda Civic horn is working?

You can test if your Honda Civic horn is working by pressing the horn button on the steering wheel. If you hear a sound, then your horn is working properly. If you do not hear a sound, then there is an issue with the horn or the wiring.

4. How do I replace the horn relay in my Honda Civic?

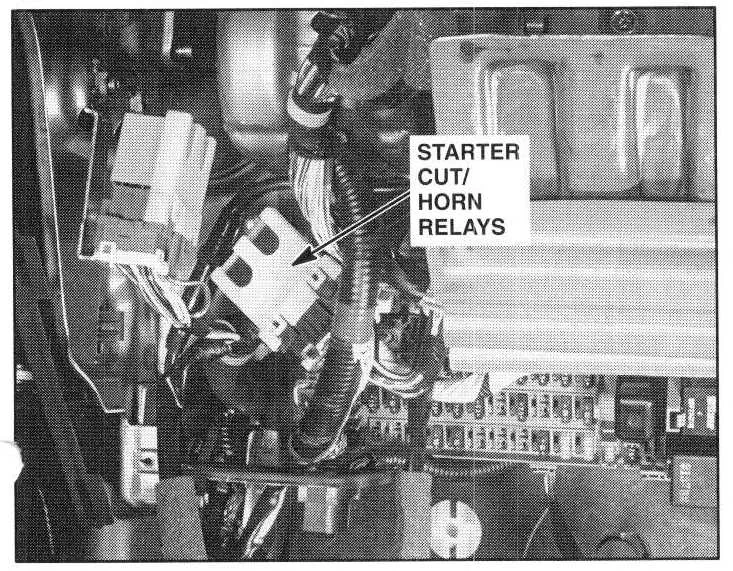

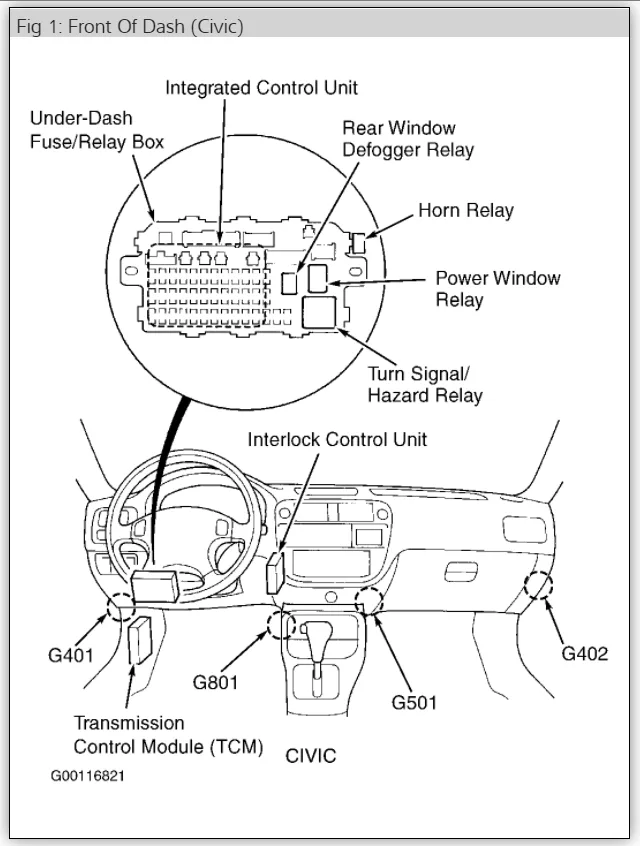

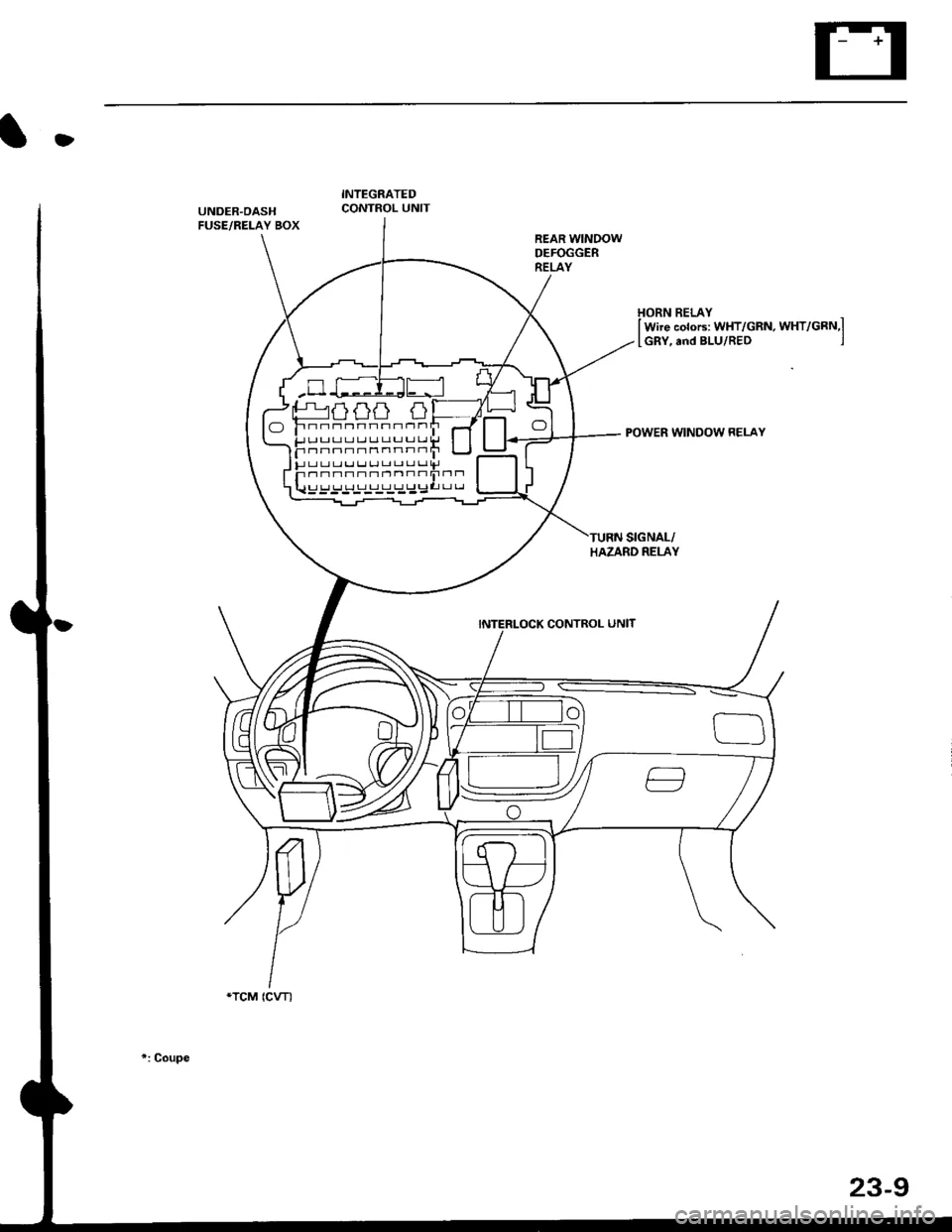

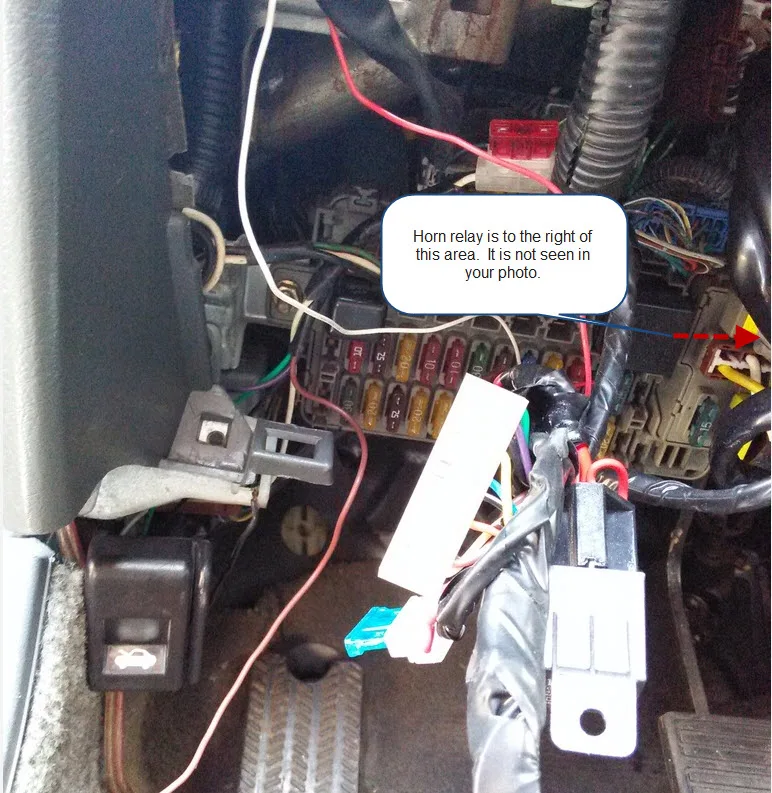

To replace the horn relay in your Honda Civic, you will need to locate the relay under the hood of the car. Once you have located it, you can unplug the old relay and plug in the new one. Make sure to check the wiring diagram to ensure that you are connecting the wires correctly.

5. Can I install an aftermarket horn in my Honda Civic?

Yes, you can install an aftermarket horn in your Honda Civic if you want a louder or more stylish horn. However, make sure to choose a horn that is compatible with your car’s wiring system and follow the manufacturer’s instructions for installation.

Conclusion

In conclusion, the 1997 Honda Civic horn wiring diagram is a simple yet important component of the car’s electrical system. It is important to have a basic understanding of how the horn works and how to troubleshoot any issues that may arise. By following the wiring diagram and the manufacturer’s instructions, you can replace or upgrade the horn in your Honda Civic with ease.
