The 13B rotary engine is a type of internal combustion engine that has significantly improved the performance of sports cars, especially the Mazda RX-7. It is known for its unique design and high-revving nature. In this article, we’re going to discuss the 13B rotary engine diagram, its components, and how it works. We’ll also answer some frequently asked questions about this engine.
13B Rotary Engine Diagram: Components and How It Works
The 13B rotary engine consists of three major components: the rotor, the housing, and the eccentric shaft. The rotor is a triangular-shaped spinning part that generates power by turning the eccentric shaft. The housing has two chambers, where the rotor moves back and forth, creating a combustion chamber.
The engine works in four stages:
The Intake Stage
The rotor moves toward the combustion chamber, creating a vacuum that pulls air and fuel into the chamber. The fuel is atomized as it enters, creating a fine mist for combustion.
The Compression Stage
The rotor moves upward, compressing the fuel-air mixture, making it highly volatile and ready for combustion. This stage is crucial as it determines the power output of the engine.
The Combustion Stage
The spark plug ignites the compressed fuel-air mixture, generating power that drives the rotor down. This power is transferred from the rotor to the eccentric shaft, which then rotates the crankshaft, producing power that drives the wheels.
The Exhaust Stage
The rotor moves toward the exhaust port, pushing out the exhaust gases that are generated during the combustion process. This completes one full cycle of the engine, which then repeats itself for continuous power generation.
The Eccentric Shaft
The eccentric shaft is the link between the rotor and the crankshaft. It is responsible for converting the rotational motion of the rotor into the reciprocating motion of the crankshaft, which produces power that drives the wheels.
13B Rotary Engine Diagram: Components of the Rotor

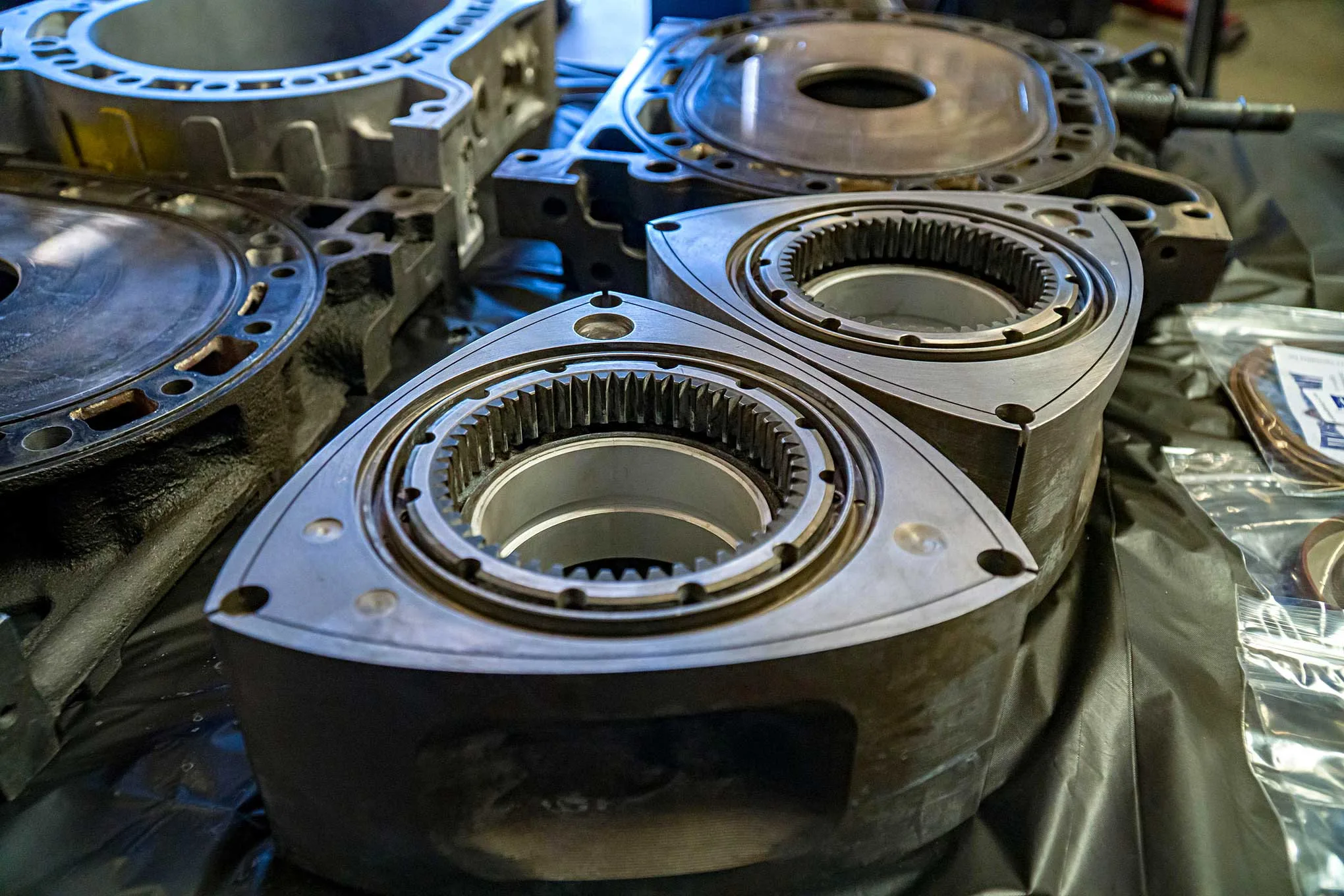

The rotor of the 13B rotary engine has two major components: the apex seal and the side seal. The apex seal is responsible for sealing the combustion chamber, ensuring that the compressed fuel-air mixture doesn’t escape. The side seal is responsible for sealing the rotor housing, preventing oil and other fluids from escaping the engine.
The rotor also has two grooves, where the apex and side seals are placed. These grooves are cut at a specific angle, ensuring that the seals fit perfectly and seal the engine tightly.
13B Rotary Engine Diagram: Frequently Asked Questions
What is the horsepower rating of the 13B rotary engine?
The horsepower rating of the 13B rotary engine varies depending on the specific model and modifications made to it. However, it has been known to produce up to 300 horsepower when tuned correctly.
What is the redline of the 13B rotary engine?
The redline of the 13B rotary engine varies depending on the specific model and modifications made to it. However, it has been known to rev up to 9,000 rpm.
How reliable is the 13B rotary engine?
The 13B rotary engine has a reputation for being less reliable than traditional piston engines. However, this is mainly attributed to poor maintenance practices and modifications that take the engine beyond its intended capabilities. With proper care, the 13B rotary engine can be just as reliable as any other engine type.
What are some common issues with the 13B rotary engine?
Some common issues with the 13B rotary engine include apex seal wear, overheating, and oil leaks. These issues can be avoided by proper maintenance practices, such as regular oil changes and keeping the engine within its intended power output.
| Component | Function |
|---|---|
| Rotary | Generates power by spinning |
| Housing | Contains the rotor chambers |
| Eccentric Shaft | Converts rotor motion into crankshaft motion |
| Apex Seal | Seals the combustion chamber |
| Side Seal | Seals the rotor housing |
Overall, the 13B rotary engine is a unique and impressive engine that has contributed to the advancement of sports car performance. Understanding its components, how it works, and proper maintenance practices can help you get the most out of this amazing engine.
